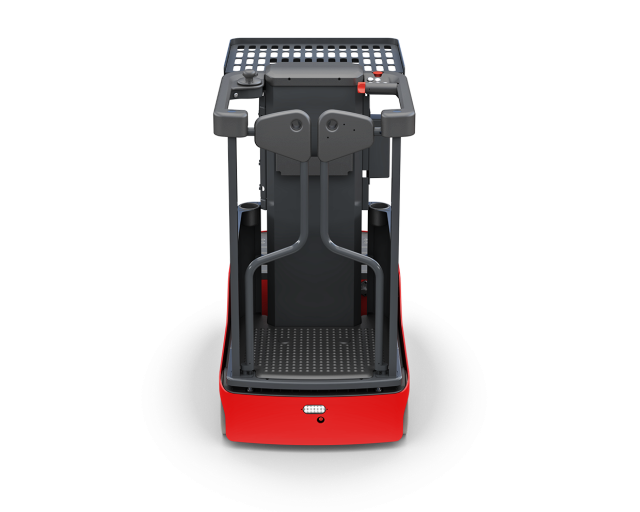

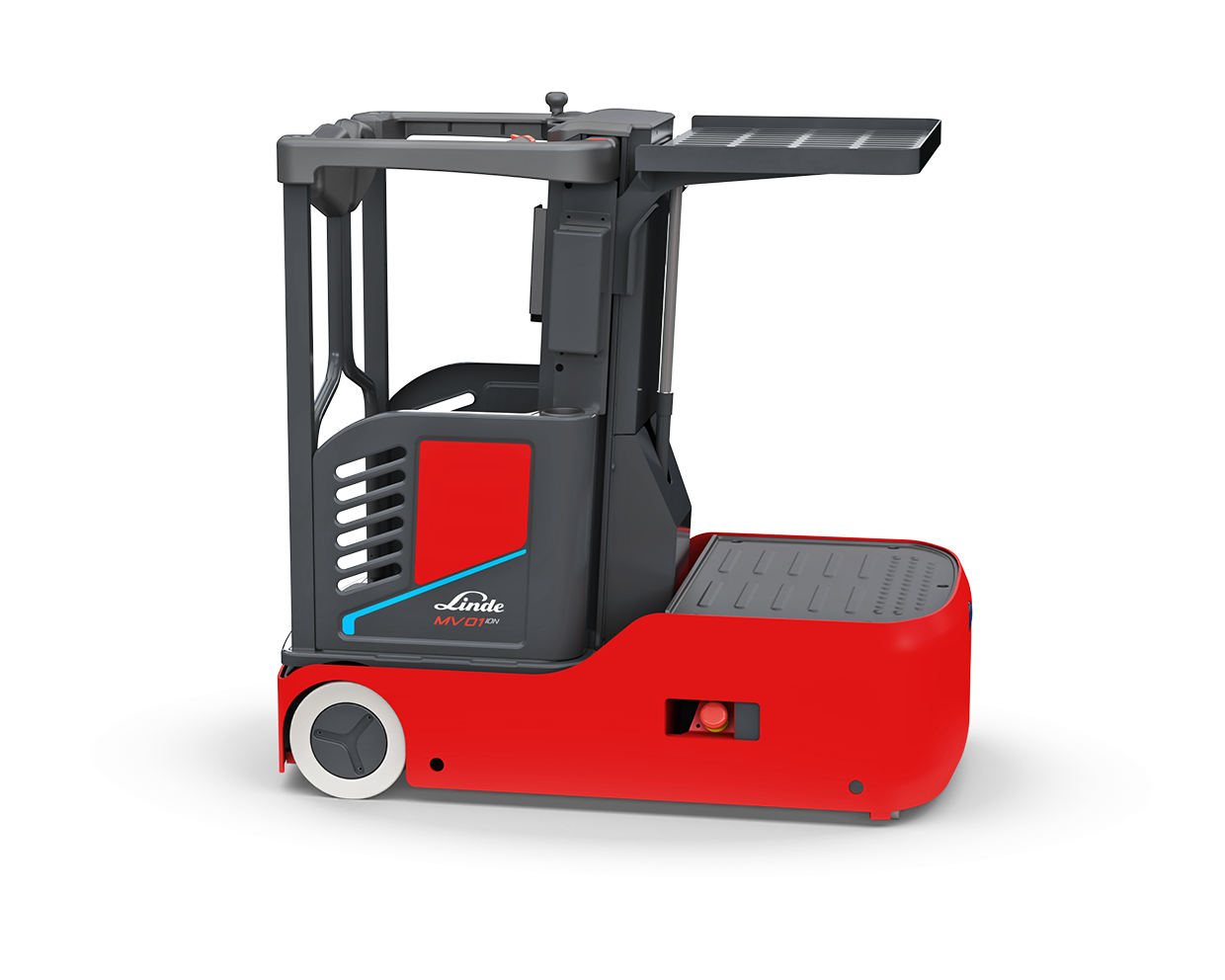

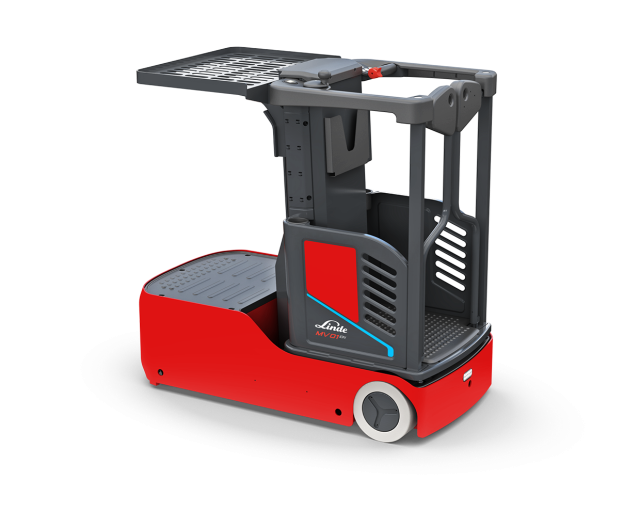

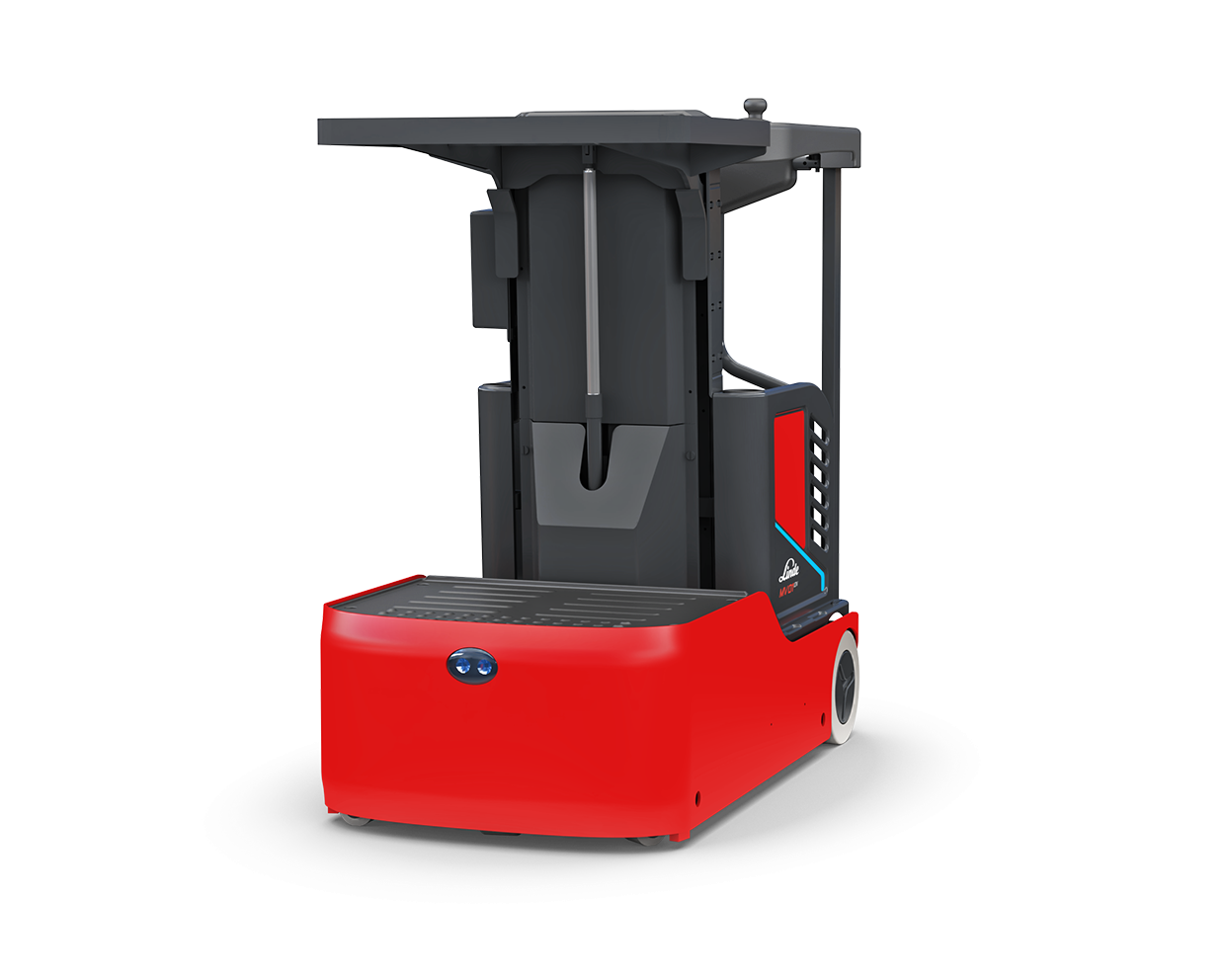

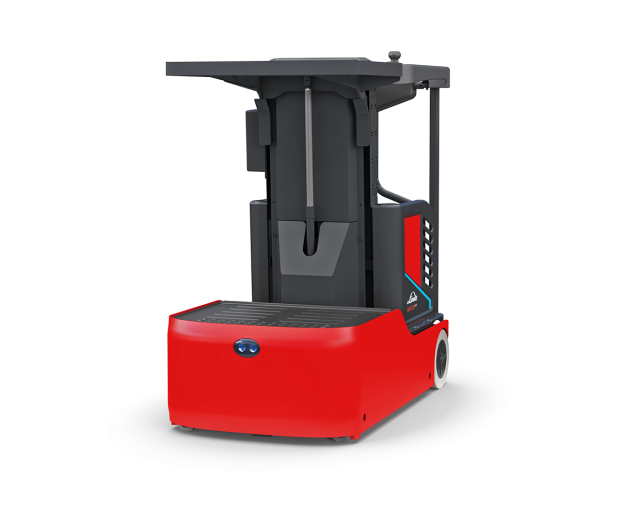

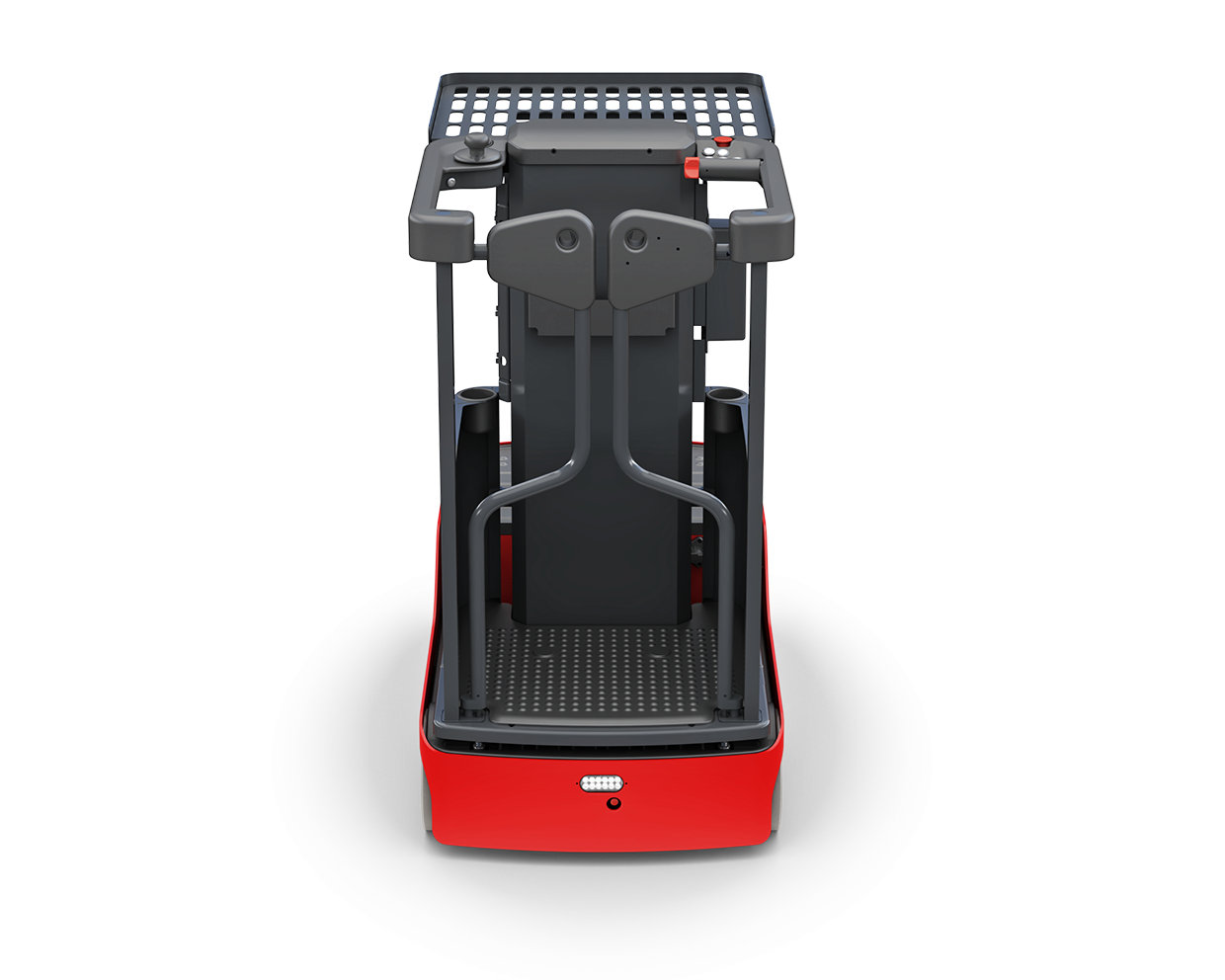

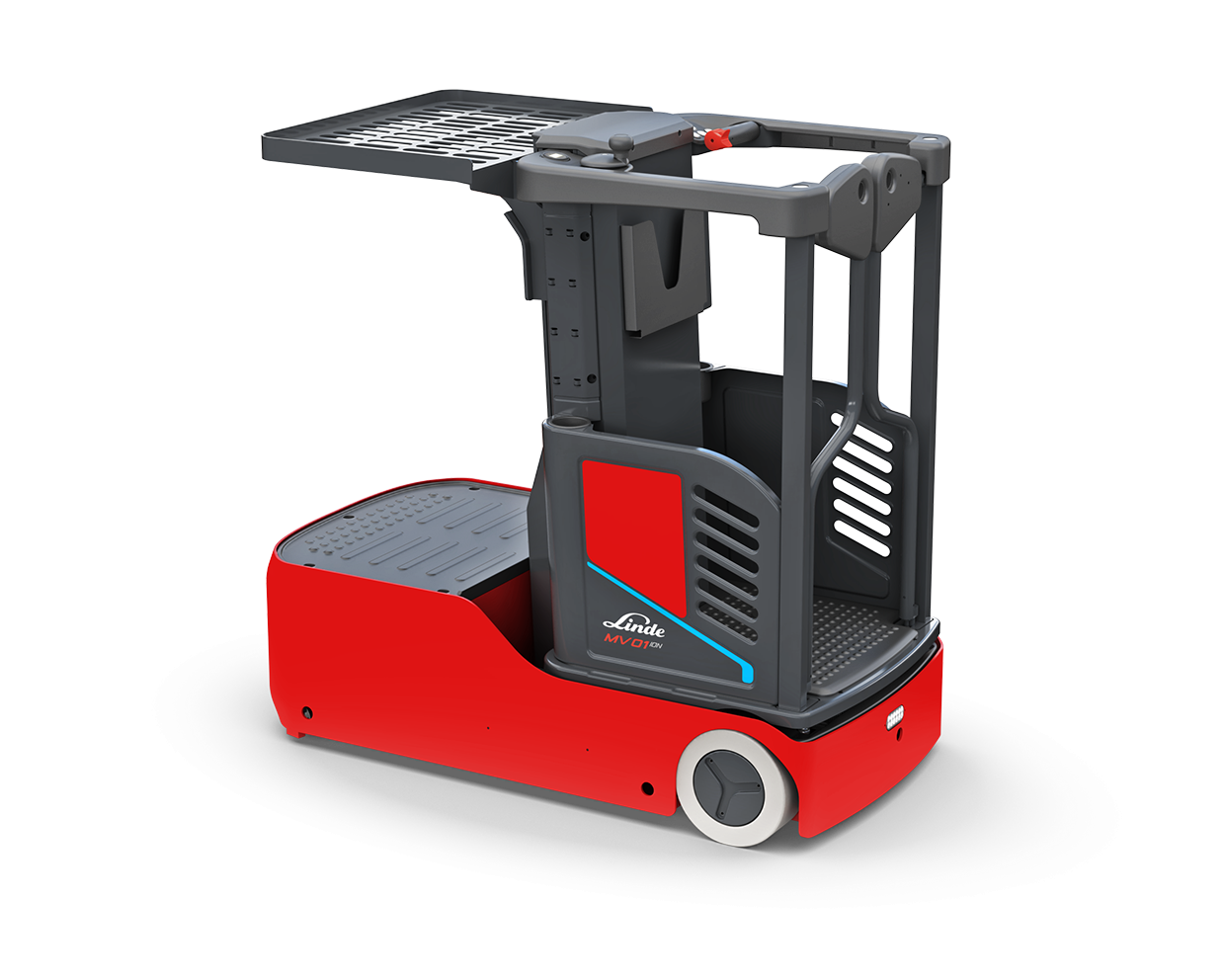

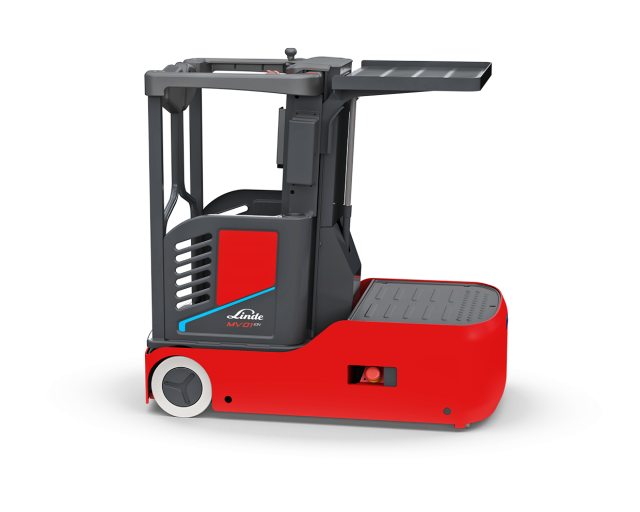

MV01 Series 8905 Electric Order Picker
Effortless Navigation in Narrow Aisles
The MV01 order picker is a compact and versatile task support vehicle designed for various warehouse tasks. Its wide range of additional equipment allows for customization to suit specific needs, whether it's for order picking, warehouse maintenance, or other tasks.
With a platform that can reach heights of up to three meters, the operator can easily access items up to 4.6 meters high. The sturdy mast ensures secure picking on higher levels, with a load capacity of up to 100 kilograms. Its compact overall length of just 1440 millimeters enhances maneuverability, making it ideal for navigating narrow aisles. This not only makes work easier for employees but also improves warehouse handling efficiency. Thanks to the Lithium-ION battery, the vehicle can be quickly recharged, ensuring it remains available for warehouse personnel with minimal interruptions.
The safety of warehouse employees is the top priority when picking at higher levels.
- Vehicle automatically reduces speed when the cab is raised, thus preventing accidents.
- The doors automatically lock so that they cannot be opened unintentionally. This guarantees that the operator remains protected inside the cab when the platform is raised and lowered.
- Due to the sensor on the handle, the vehicle can only be moved when the operator grips the control unit and steps on the double foot switch — this reduces the risk of operating errors and injury.
- Warning lights and signal tones increase safety for employees around the vehicle during operation.
The efficiency of order picking depends to a large extent on the operator's workload.
- Ergonomically designed features including a spacious cab in which the operator can work comfortably.
- All control elements are arranged so that they can be reached effortlessly.
- Operator can adjust the height of the loading platform electrically so that they have an optimum view of it and can load the goods safely.
- Due to the stable design, the platform can be raised up to three metres. This means that a picking height of 4.6 metres can be reached effortlessly by the operator.
- The short overall length of just 1440 millimetres makes the task support vehicle easy to steer, even in narrow aisles and curves.
- Easy manoeuvrability reduces the physical strain on warehouse employees, thus increasing their productivity.
- DC motor accelerates the vehicle up to 6.5 km/h.
- Vehicle can operate and lift at the same time, this allows the operator to reach the desired rack location in the fastest way possible.
- Integrated charger allows the Lithium-ION battery to be recharged during short breaks, so that the vehicle is available for the entire shift.
- CAN bus connectivity enables all truck data to be read out on a laptop computer by the service technician making the service process easier.
- Lithium-ION batteries are maintenance-free and contribute to high energy efficiency and vehicle availability.
- Battery management system ensures high performance and long battery life.
- Low-maintenance DC drive motor reduces service costs.
- All components are easily accessible to service technicians, which speeds up and simplifies repairs.
