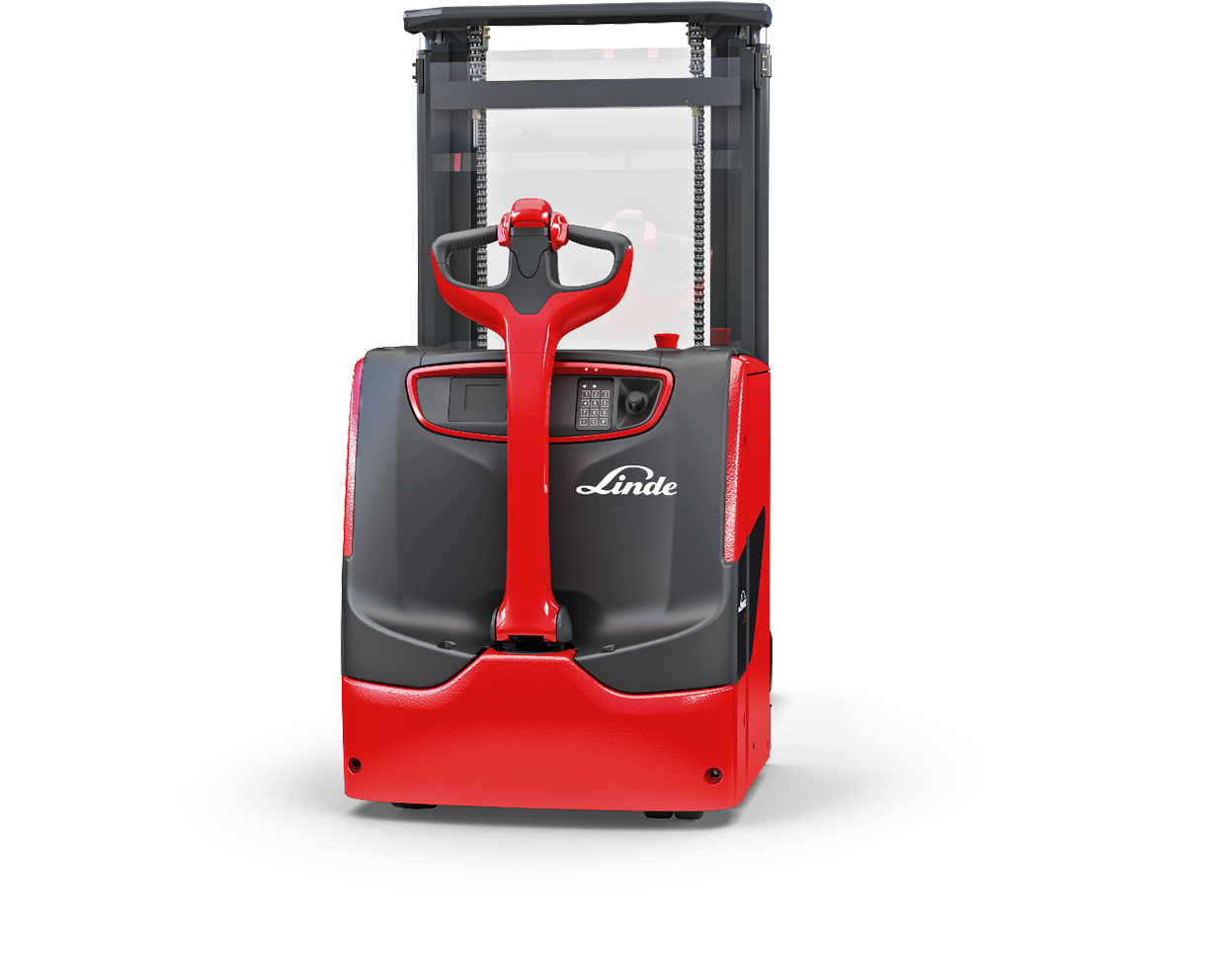

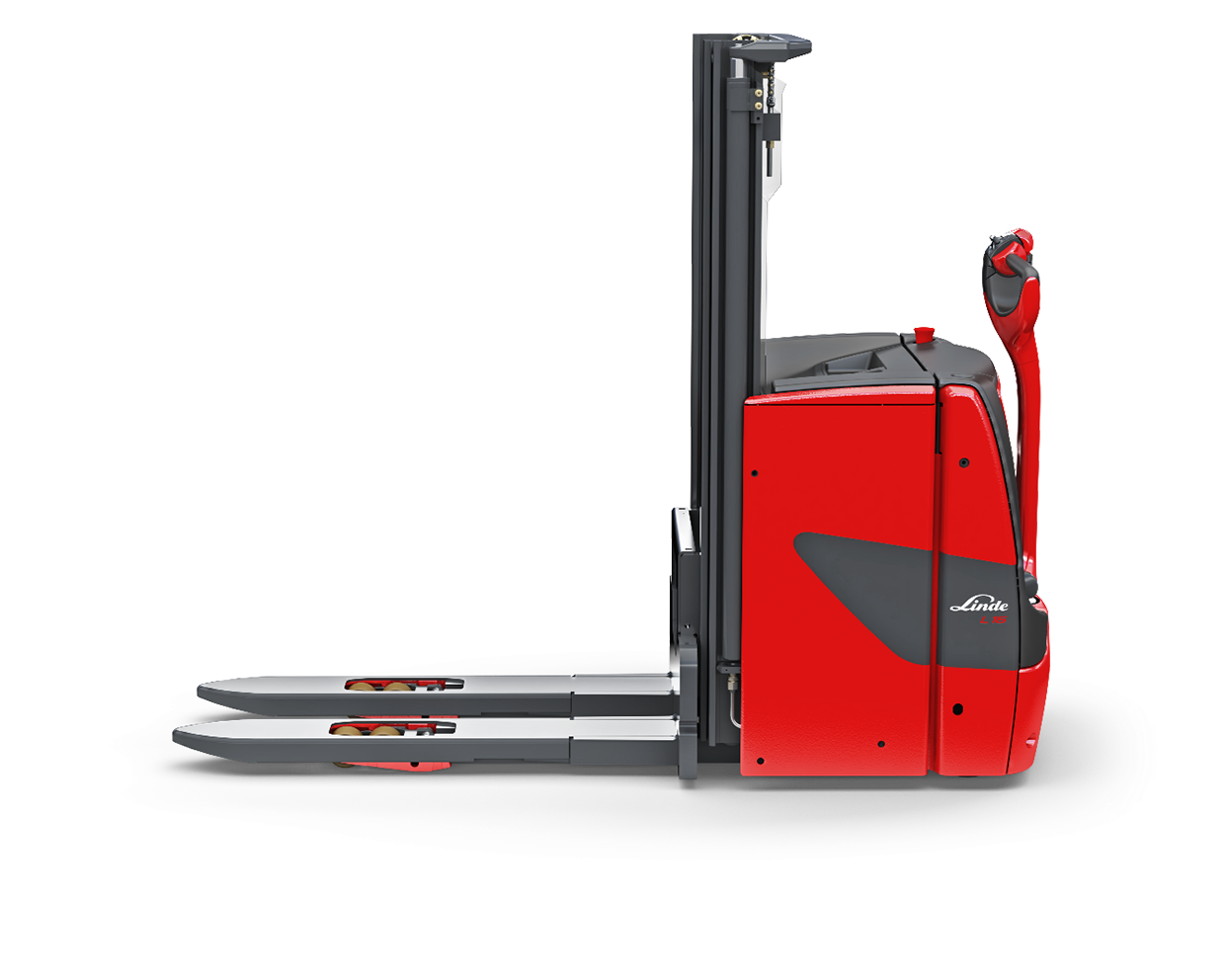

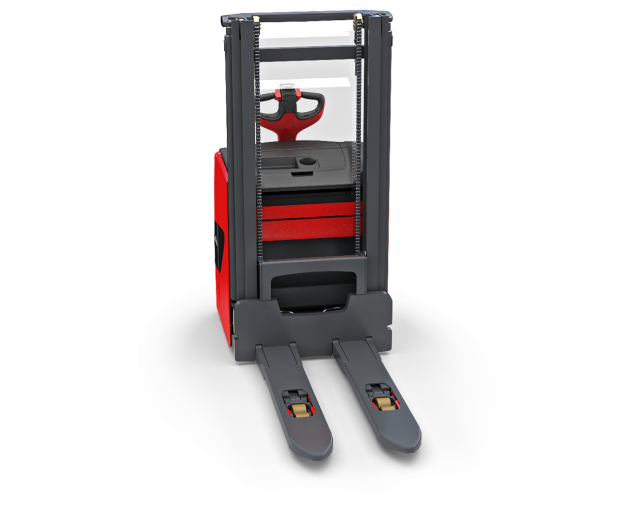

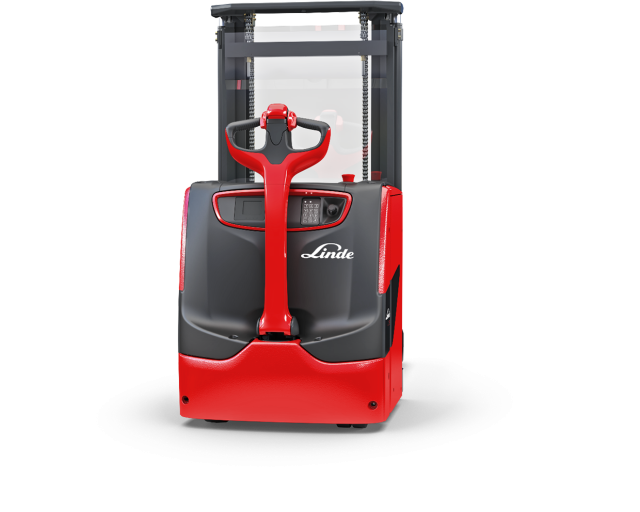

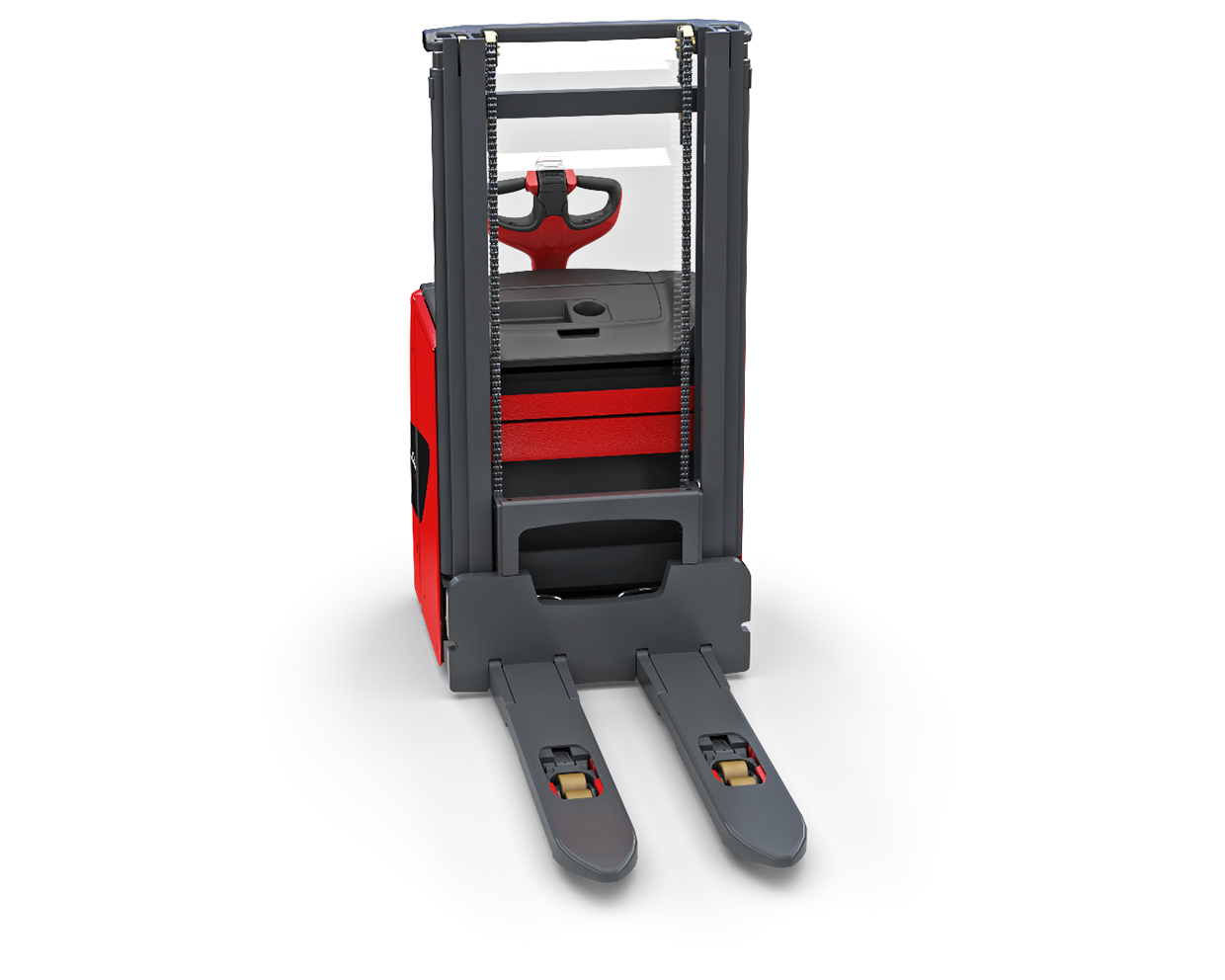

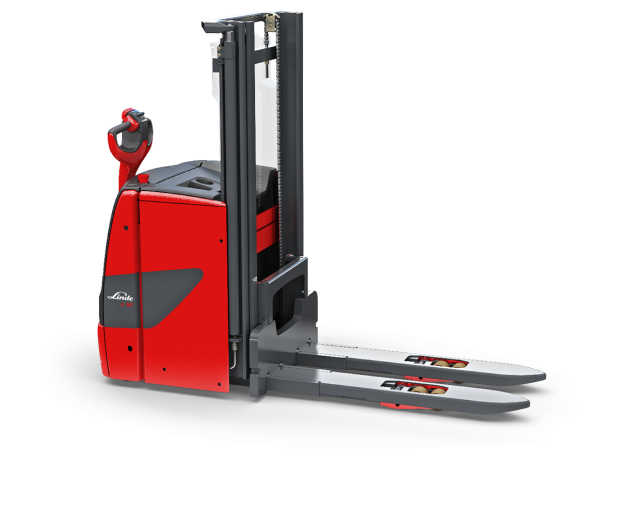

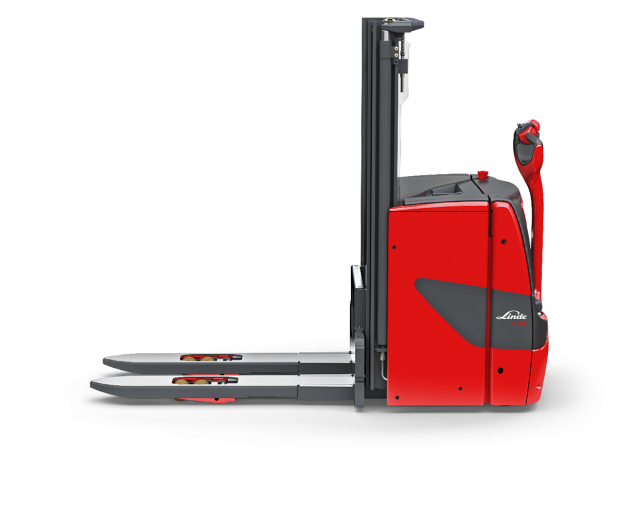

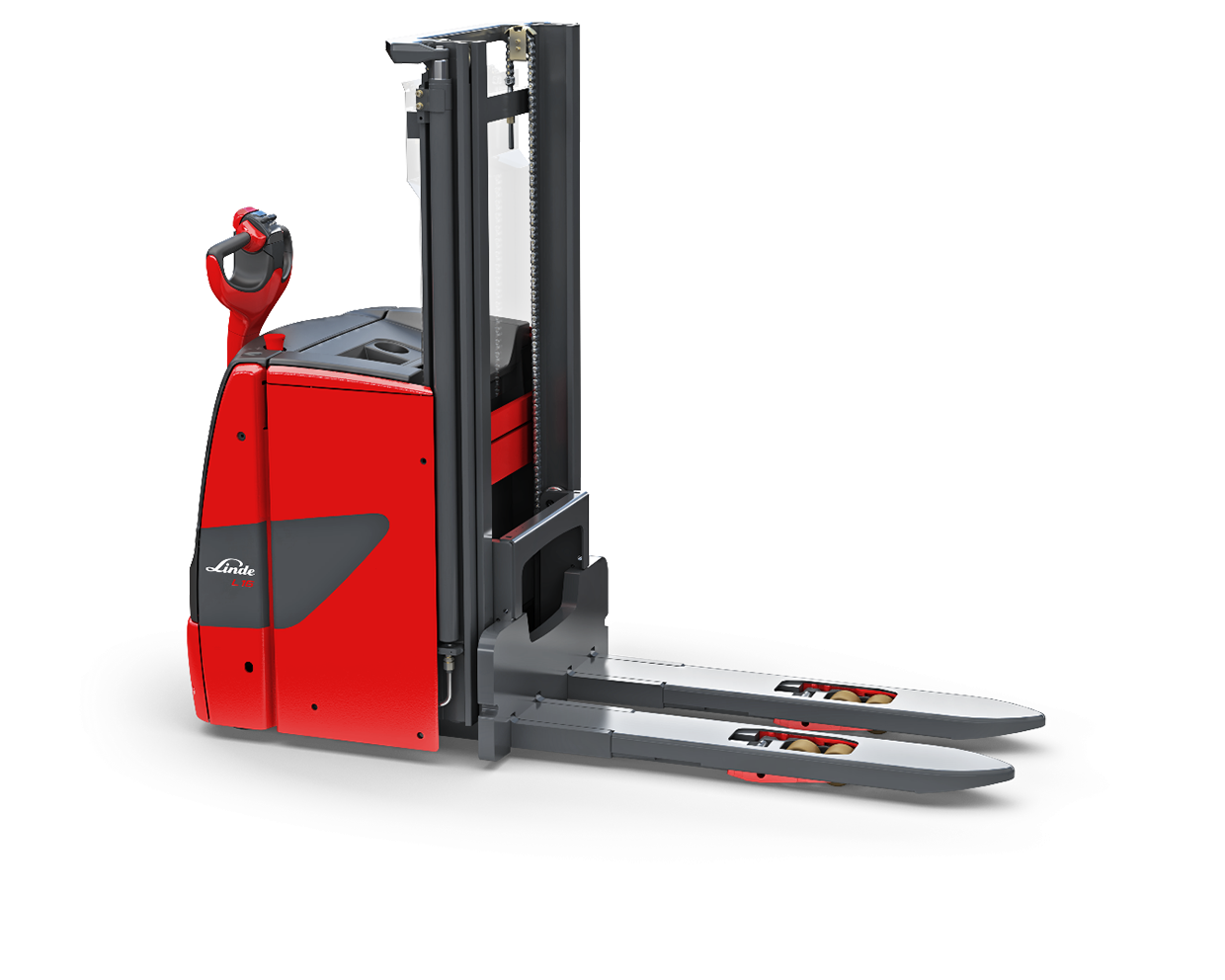

L14 - L20 Series 1173 Electric Pallet Stacker

Accurate Load Management for Heavy Cargo.

The L14 - L20 pedestrian electric pallet stackers, equipped with robust 2.3kW AC motors and impressive load capacities, enhance handling efficiency significantly. They are well-suited for operations in narrow aisles and service lifts, and an optional initial lift version provides extra ground clearance.

  •   Lift Capacity 1.4 - 2.0 tonne
  •   Engine Li-ION or Lead-acid batteries
  •   Lift Height Options available up to 5.31m
  •   Range Performance Plus


These trucks can securely transport loads of up to 2.0 tonnes across ramps and uneven terrain, while the precise OptiLift lift mast control simplifies handling by ensuring all lifting movements are executed with precision.

Features

Safety

- Linde SafetyLift ensures that the lift mast can only be lifted when the tiller is in the up position.

- Angle of tiller ensures the truck automatically adjusts its speed to the distance between the operator and the truck.

- Electromagnetic braking system activates if the operator moves the tiller to the top or bottom end position.

- Slight resistance before the end-of-stroke prevents unintended braking.

- Optional load scale displays the weight of the load and warns of overloads

Ergonomics

- All control elements are ergonomically arranged in the tiller head and can be reached intuitively.

- Electrical power steering helps the operator manoeuvre without great effort.

- Generously designed storage compartments offer space for work devices such as scanners

Handling

- A load capacity of 1.4 - 2.0 tonnes and a powerful 2.3kW AC motor ensure efficient handling processes.

- A robust chassis provides a high residual load capacity.

- Loads can be moved very precisely using the OptiLift operating concept.

- Soft landing function helps the forks land softly.

- Optional load weight display is helpful in many handling processes as it displays the weight with an accuracy of +/- 50kg up to a lift height of 1,500mm.

Service

- Robust components, a stable chassis and a maintenance-free AC motor ensure long service intervals and low operating costs.

- Motor is completely moisture and dust resistant.

- Large colour display gives service technicians and operators a quick overview of operating hours, battery capacity and service status.

Applications


  •   Stacking
  •   Transporting
  •   Storage
  •   Order Picking
